This page has been
extracted from Pages 224e and 224f of John Henry Walsh's "The Modern
Sportsman's Gun and Rifle V1 : Game and Wildfowl Guns (1882)" and reviews
aspects of shotgun design adopted by W. R. Leeson based upon patents held by P
Webley & Son and illustrates another variation of the "third bite" bolting
system. I can make no apologies for the Victorian style of English used by
Mr. Walsh !!
The peculiarity of the bolts now under notice is that they
combine the old grip draw with the Purdey snap-bolt. The latter is nearly of the
ordinary form, and is actuated in the usual way by a cam at the bottom of the
spindle, which is raised from below into the centre of the lever head, the two
being held together by a screw, which keeps both to their bearings.

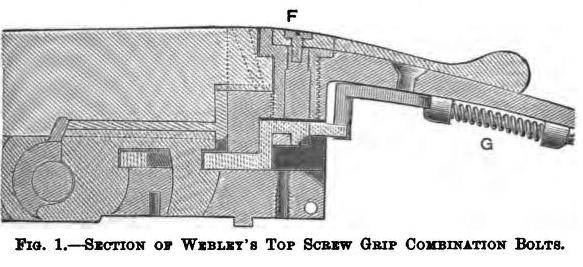

The several parts are shown in the above section in combination,
as applied to the Anson and Deeley locks, but it may be combined very nearly as
well with the Gibbs and Pitt top-lever action and side-lock, or with any other

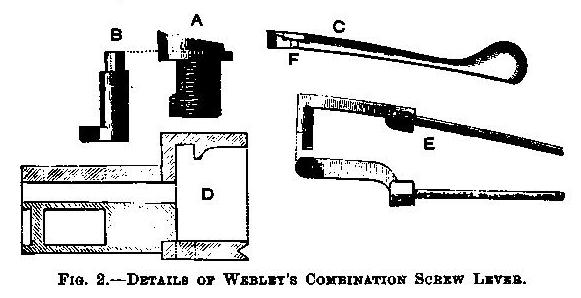

top lever action, with or without hammers, The novelty consists in cutting a
fine square threaded screw on the perpendicular head (Fig. 2, A) of the top
lever, which
is made of tempered steel, and enlarged for that purpose. This
screw-head contains within it, as above described, the spindle (B) working, the
cam (Fig. 2, B). The screw-head fits into a. female screw cut in the top of the
break-off behind the doll's head, so that the upper flange of the male screw and
the under one of the female only are in close contact, by which means all danger
of "setting" is avoided. The spind1e works the cam B, which latter actuates the
under bolt D in the usual manner. The entire combination is worked by the top
lever C, fitting securely into the square recessed head of the screw-grip, all
being firmly bound together by a screw pin (Fig. 1, F). The spring (Fig. 1, G)
actuating both the Purdey bolt and the screw grip is a spiral one, app1ied to
the end of the bolt D, Fig. 2, by means of the spring bar E. The extended rib of
the barrel is held down by the head of the screw grip engaging with it on
closing the gun.
A beautifully designed pigeon gun with these bolts was brought to
my notice by Mr. Leeson of Ashford the workmanship of which was of a very high
quality and I cannot but think the combination an admirable one, and
particularly well adapted for guns used with heavy charges, while at the same
time its manipulation was extremely smooth and easy. The plan is the invention
of Mr. Thos, W. Webley and of Mr. Brain one of the employee of the firm. It may
be made with or without a dolls head, and really resembles the old grip action,
with the advantage that the grip is at that part of the barrel (its extreme rear
end), when it tells to the greatest advantage, and is further superior to the
old grip, insomuch that there is no undue friction, the bearing parts not coming
into contact until the barrels and screw are dead home; and they as instantly
part contact as soon as the lever is touched to open the gun. This is caused by
the pitch of the thread on the screw, and to this advantage may be added that it
is self-locking.
